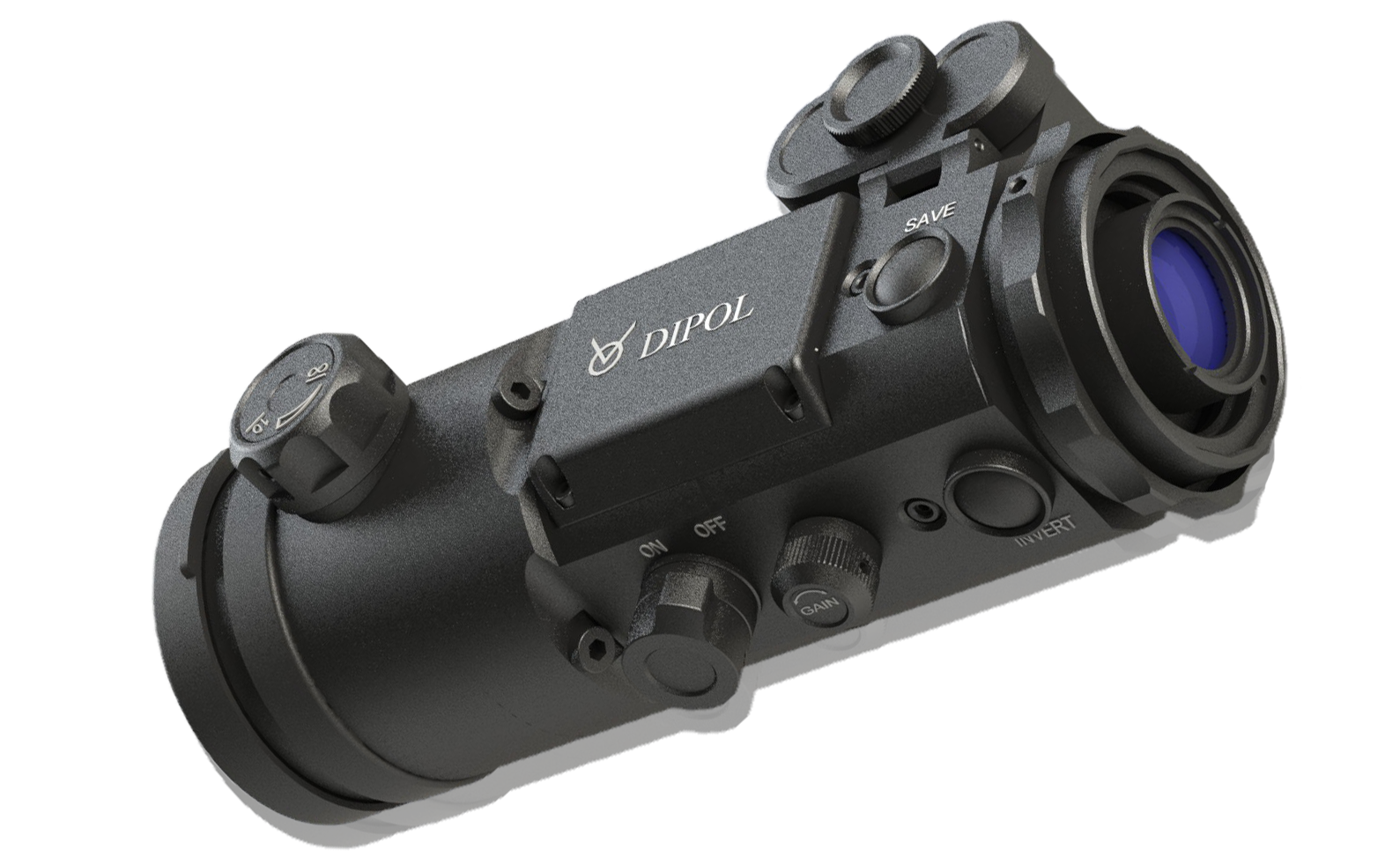

DIPOL TFA 1000

Wärmebildvorsatzgerät

Technische Merkmale

Sensor, array format/pixel pitch: 384 x 288 / 17 um
Lenses, focal lenght, mm: F40/1.0
Magnification: 1х
Maximum impact load, g: 600
Angle of vision, degree: 9.3° x 7.0°
Spectral response, um: 8-14
Frame rate, Hz: 50
Palette invert: White hot/black hot
Supply voltage/ type of bateries: 6 V/ 2xCR123A
Operating time (at +20°C), hour: 2.5
Operating temperature, °C: -40 … +50
Detection range (object 0,5х1,8 m), m: up to 1000
Degree of protection by IEC 60529(by order): IPX5 (IPX7)
Dimensions, mm: 165 x 84 x 71
Weight, kg: 0.58
